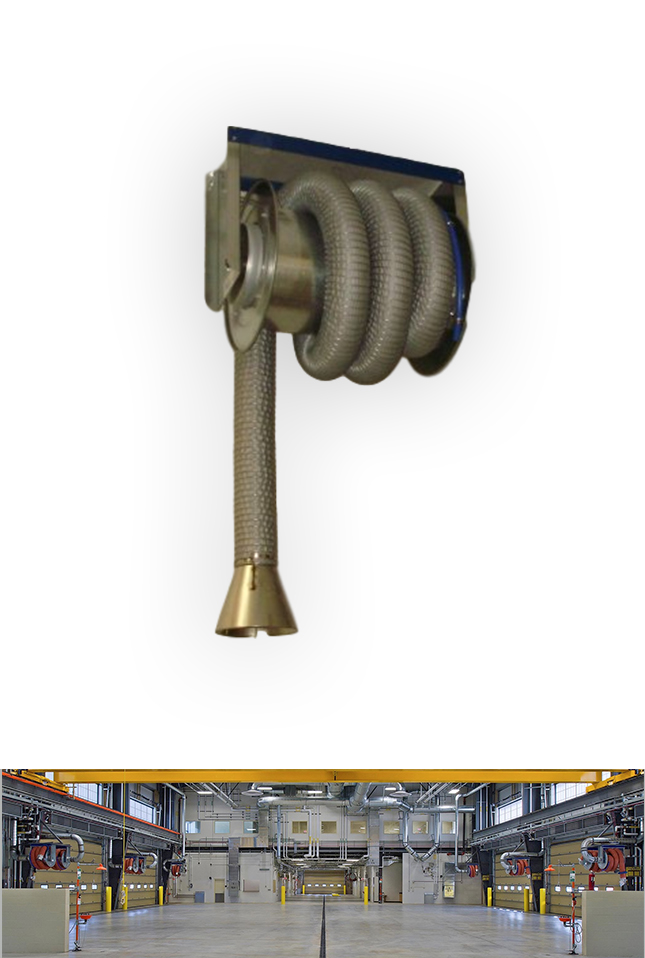

SPRING HOSE REEL SYSTEM

Ventaire automatic spring hose reels, model HRA, use heavy duty carbon springs to manually extend and retract the hose. When needed, simply pull the hose assembly to the desired location and lock into place. Once finished, simply pull on the hose to unlock the reel and allow the hose assembly to retract automatically. The HRA spring hose reels can be ducted to a central fan or provided with an individual direct mount exhaust fan. Ventaire spring hose reels ship fully assembled from the factory.

FEATURES:

  • Robust reinforced steel construction with enclosed carbon springs.
  • Lock and latch design allow for convenient hose length control.
  • 3”, 4”, 5”, 6”, 8” high‐temperature or medium‐temperature flexible hose assemblies.
  • Pull cable with handle for simple extension and retraction of the flexible exhaust hose.
  • Hose lengths range from 16′ to 45' in length, depending on hose diameter & type.
  • Available in ceiling, sidewall or floor mounting configuration.
  • Made in the USA.
  • Options: Automatic damper, micro-switch for fan/damper control, direct mounted fan, special color.
